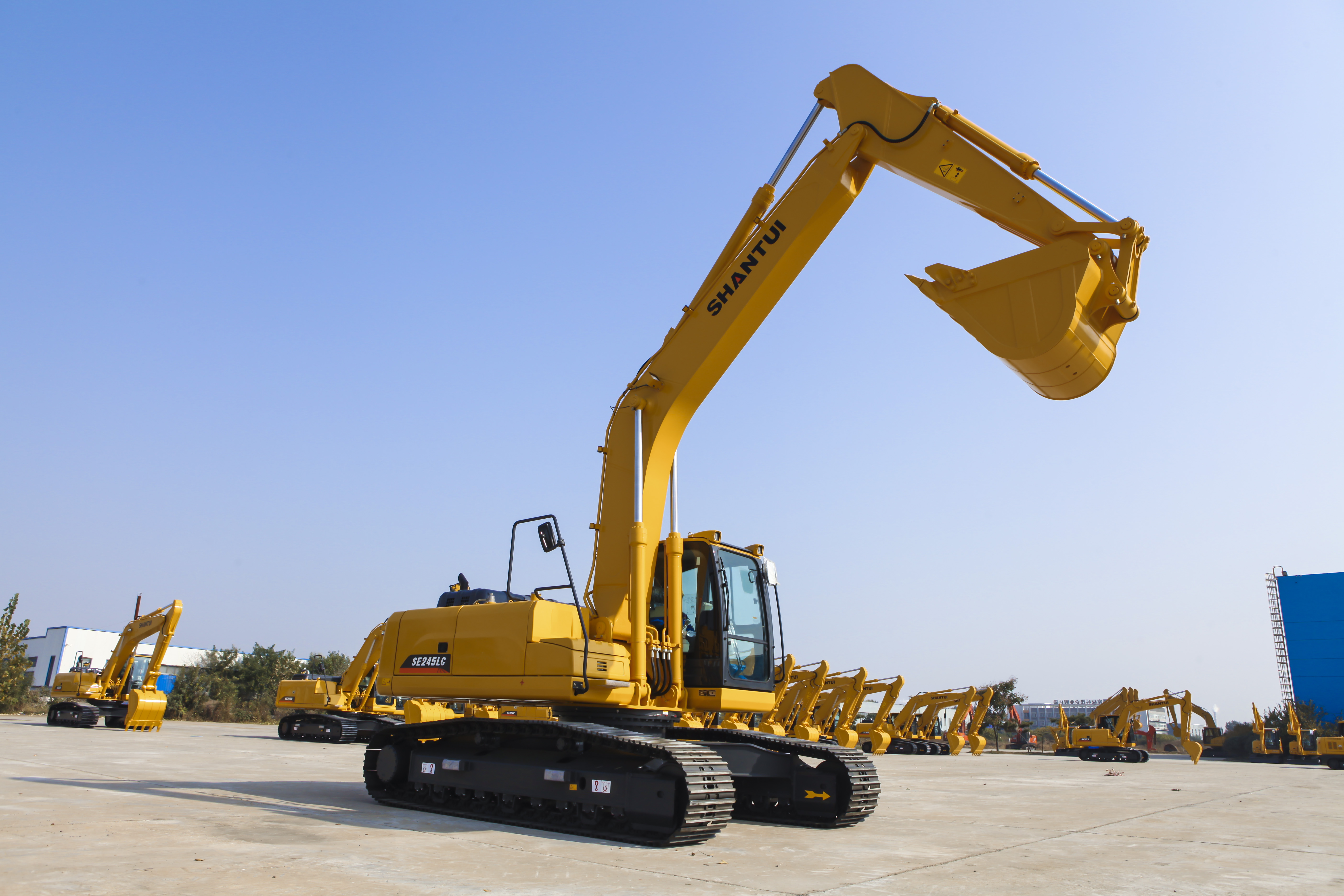

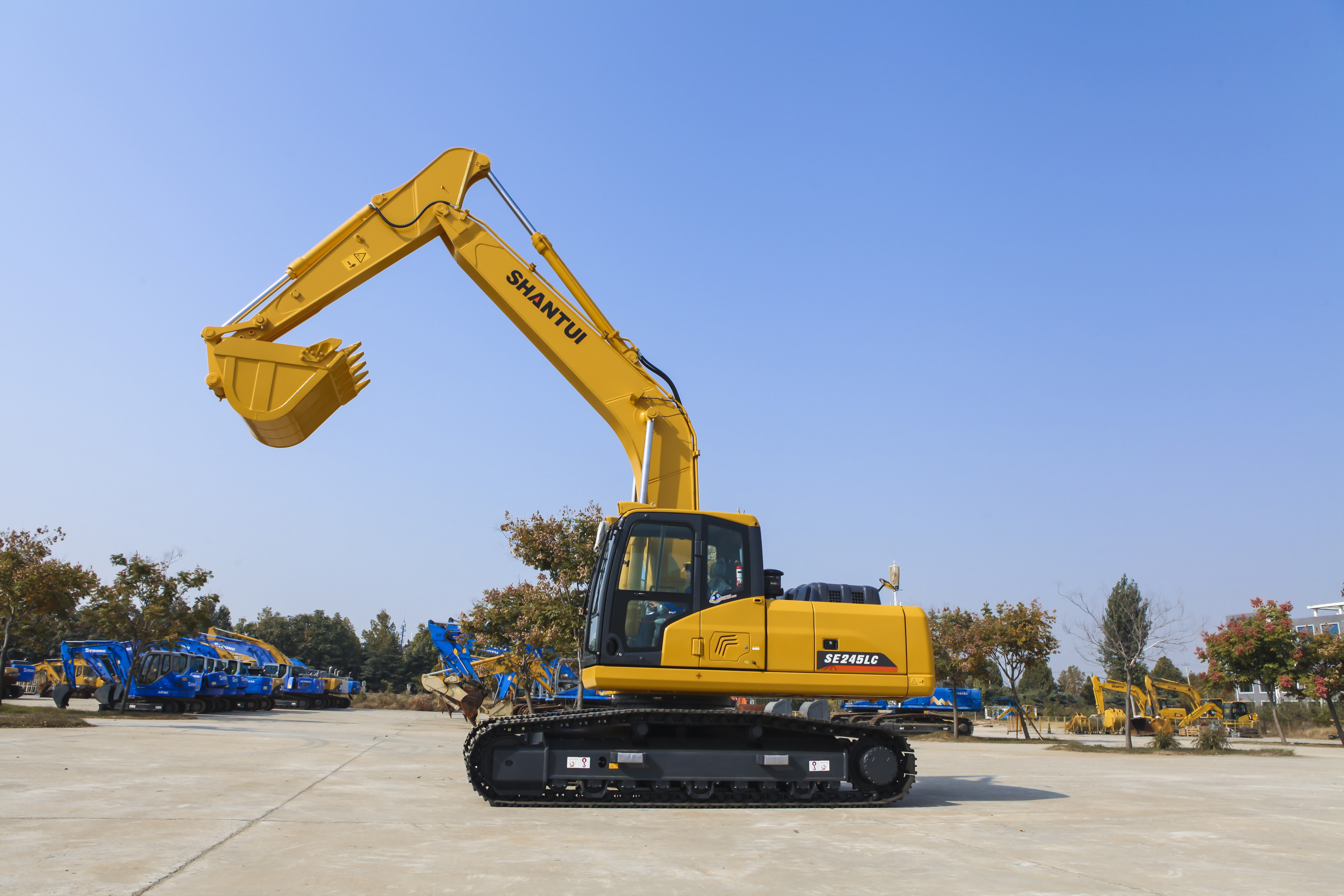

SE245LC SHANTUI EXCAVATOR

PARAMETER

Comparative item

SE245LC (Standard version)

Overall dimensions

Overall length (mm)

9985

Ground length (During transport) (mm)

5350

Overall height (To the top of boom) (mm)

3235

Overall width (mm)

3180

Overall height (To top of cab) (mm)

3075

Ground clearance of counterweight (mm)

1083

Minimum ground clearance (mm)

465

Tail turning radius (mm)

3000

Track length (mm)

4660

Track gauge (mm)

2580

Track width (mm)

3180

Standard track shoe width (mm)

600

Turntable width (mm)

2725

Distance from slewing center to tail (mm)

3000

Working range

Maximum digging height (mm)

10180

Maximum dumping height (mm)

7200

Maximum digging depth (mm)

6864

Maximum vertical digging depth (mm)

5978

Maximum digging distance (mm)

10198

Maximum digging distance at ground level (mm)

10015

Working device minimum turning radius (mm)

3276

Engine

Model

QSB7(China III)

Type

Inline 6-cylinder, high pressure common rail, and water-cooled and turbocharged

Displacement (L)

6.7

Rated power (kW/rpm)

150/2050

Hydraulic system

Type of hydraulic pump

Duplex axial variable displacement plunger pump

Rated working flow (L/min)

2x238

Bucket

Bucket capacity (m³)

1.05

Swing system

Maximum swing speed (r/min)

11

Brake type

Mechanically applied and pressure released

Digging force

Bucket arm digging force (KN)

99/107

Bucket digging force (KN)

137/148

Operating weight and ground pressure

Operating weight (kg)

24800

Ground pressure (kPa)

47.9

Traveling system

Traveling motor

Axial variable displacement plunger motor

Traveling speed (km/h)

3.3/5.1

Traction force (KN)

274

Gradeability

70%（35°）

Tank capacity

Fuel tank capacity (L)

330

Cooling system (L)

28

Engine oil capacity (L)

22

Hydraulic oil tank/system capacity (L)

270/400
