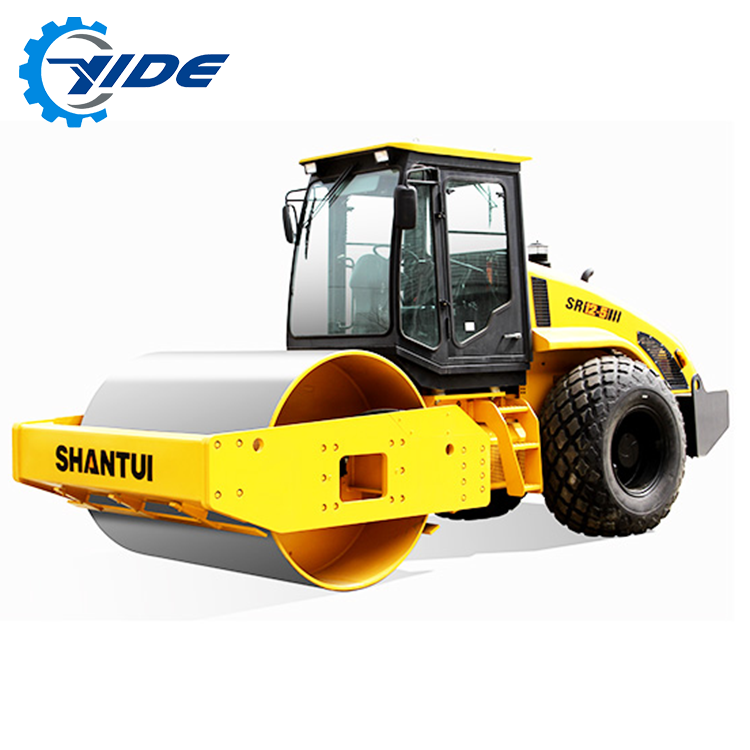

SR12-5 SHANTUI Road Roller

Parameter name

SR12-5

Performance parameters

Operating weight (Kg)

12000

Exciting force (KN)

290/200

Vibration frequency (Hz)

30/35

Nominal amplitude (mm)

2/1.0

Grade ability (%)

48

Engine

Engine model

WP6G140E22

Rated power/rated speed (kW/rpm)

105/2200

Overall dimensions

Overall dimensions of machine (mm)

5934*2275*3214

Driving performance

Forward speed (km/h)

F1:0-5.3,F2:0-9.9

Reversing speed (km/h)

R1:0-5.3,R2:0-9.9

Fuel tank (L)

230

Compacting width（mm）

2130
